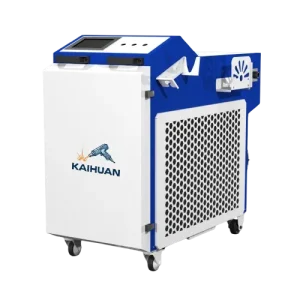

Kaihuan 3000W Handheld Laser Welder Built for Continuous Heavy Fabrication
Welds 8mm carbon steel in a single pass. Runs three shifts without thermal derating. Uses the same industrial-grade MAX/Raycus modules as high-end OEM systems — at 1/6 the cost. Factory-direct.
⚙️ 100,000+ hrs MTBF Laser Source
🏭 Verified Factory — Visit Anytime
🌍 50+ Countries
🏷️ Full OEM/ODM
When 2000W Isn't Enough — and Premium Systems Cost Too Much
This isn’t simply higher wattage — it’s a different class of machine, designed from the ground up
for industrial production.
There are two reasons a shop buys a 3000W laser welder. Either you’re already running 1500W or 2000W and hitting the power ceiling — or you’re looking at a $30,000+ premium laser welding system, wondering if there’s a serious alternative. The KH-3000 answers both.

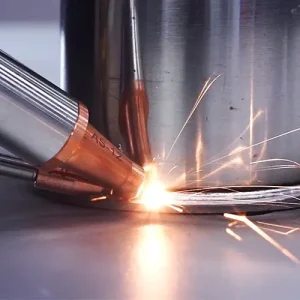

With 3000 watts from a genuine industrial-grade MAX or Raycus module, this machine welds 8mm
carbon steel and 4mm aluminum in a single pass — work that historically required robotic systems or
multiple TIG/MIG passes. The beam quality and stability match what you’d expect from a system costing
5–6× more, because the core laser module is the same class used in high-end OEM welding systems.
What this means on your factory floor:
• Single-pass 8mm structural steel — no multi-pass, no preheating
• 4mm aluminum with full penetration and clean bead
• 24/7 continuous operation — the cooling system is industrial, not adapted
• Production-grade rust removal and cutting — usable as standalone processes
3000W — Speed Isn't Incremental, It's Transformational
From 2000W to 3000W isn’t a 50% speed bump. A 6mm carbon steel joint that takes ~35 seconds at 2000W takes ~20 seconds at 3000W. Over a 2,000-hour production year, that’s roughly 30% more throughput from the same operator — meaning you might need one fewer shift to hit production targets.
| Specification | KH-3000 | Production Impact |
|---|---|---|
| Max Laser Output | 3000W | 8mm CS single pass, 4mm Al |
| Laser Source | MAX / Raycus Industrial Grade | 100,000+ hrs MTBF, >90% at 5 years |
| Weld Capacity (CS) | Up to 8mm | Structural steel, heavy fabrication |
| Weld Capacity (SS) | Up to 6mm | Process piping, pressure vessels |
| Weld Capacity (Al) | Up to 4mm | Automotive, marine, aerospace |
| Voltage | 380V, 3 Phase | Standard in manufacturing facilities |
| Current Draw | 13A | Runs on standard 20A 3-phase circuit |
| Cooling | Industrial chiller ±1°C | 24/7 continuous duty without thermal derating |
| Control | 7" Touch, 16 Languages | Recipe storage + production count logging |
| Wire Feeder | Auto, dual-spool | Continuous production without spool changes |
| Functions | Weld + Clean + Cut | All three at production-grade |
| Net Weight | 240KG | Industrial build for stability |

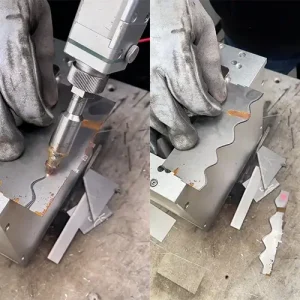

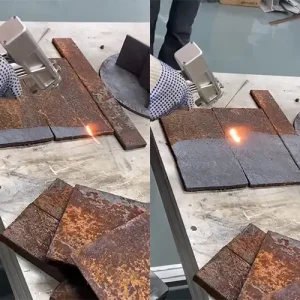

3-in-1 — Production-Grade in Every Mode
On the 1500W, cleaning and cutting are useful extras. On the 3000W, all three modes are production-capable
3000 watts delivers deep, narrow penetration with minimal heat distortion — critical for thick-section structural work where interpass temperature control is a quality requirement. Wire feed bridges assembly gaps up to 2.5mm.
Industrial Reliability — Engineered for the Long Haul

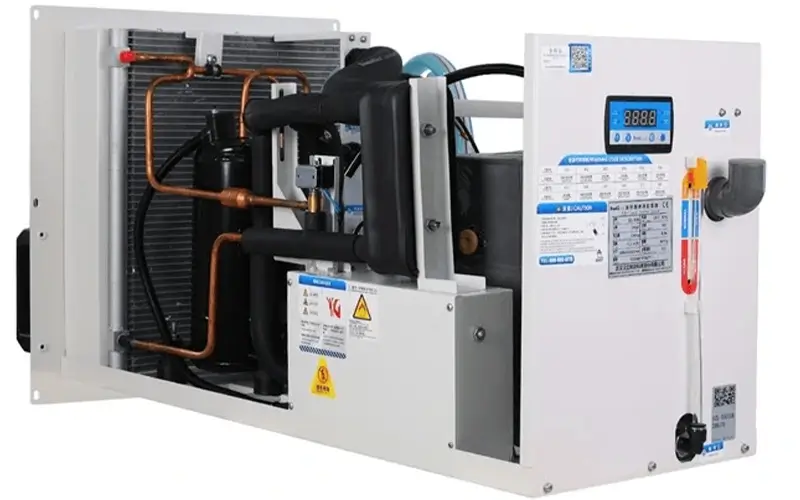

24/7 Continuous Operation — By Design, Not Luck
The defining differentiator. High-capacity industrial chiller with ±1°C stability, oversized heat
exchangers, redundant pump circuitry. Three shifts, five to seven days a week, no thermal shutdown.
For manufacturers with production quotas and penalty clauses — uptime is the business.

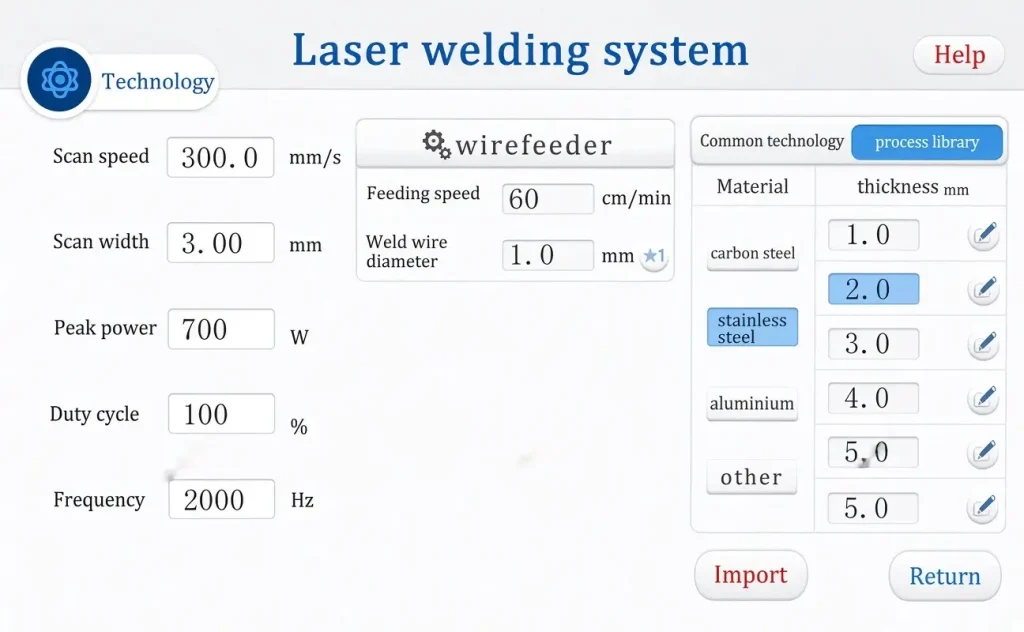

Production Data Logging
Total weld time tracking, energy consumption monitoring, production piece counting. For piece-rate
shops tracking OEE, this data feeds directly into your production management — no manual logs,
no guesswork.
5-Year Laser Source Longevity
Rated for 100,000+ hours MTBF by the laser source manufacturer — backed by five years of field
data from our industrial customers. <10% power degradation over 5 years. Compare to no-name
sources that show measurable loss in 6–12 months. The TCO difference is in the tens of thousands.

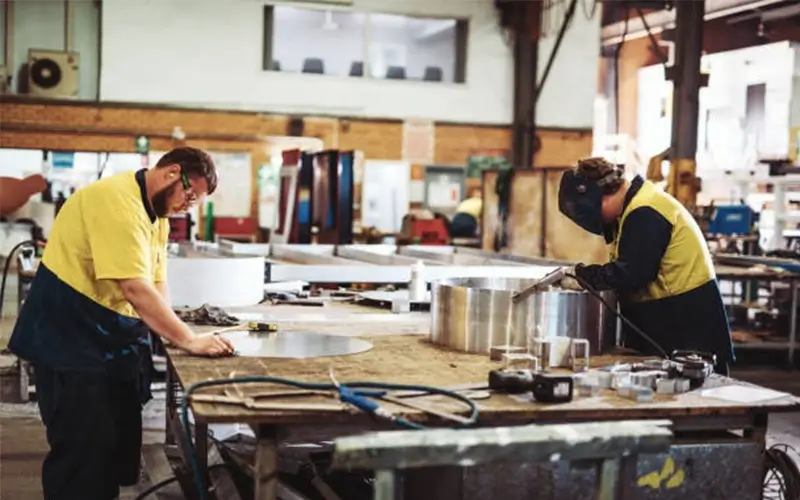

Heavy Fabrication ROI
A structural steel fabricator outsourcing 6–8mm plate welding:
• Before: $85/hr × 1,500 hrs = $127,500/year outsourced
• After: $18/hr operator × 1,200 hrs (30% faster) + $9,400/year amortization = $31,000/year
• Annual saving: $96,500. Full ROI in under 6 months.
*Based on typical structural fabrication data. Your results depend on specific application and labor rates.
Is the KH-3000 Right for Your Operation?
KH-3000 vs. Premium Laser Welding Systems — An Honest Comparison
Here’s how the KH-3000 compares to premium laser welding systems — the kind that cost $30,000 to $80,000. Not because we claim to beat them on every metric, but because for most heavy fabrication applications, the differences that matter are in the price tag, not the weld quality.
| Factor | Kaihuan KH-3000 | Premium System A (≈$30K–$50K) | Premium System B (≈$50K–$80K) |
|---|---|---|---|
| Laser source | MAX/Raycus (industrial) | Proprietary (tier-1) | Proprietary (tier-1) |
| Beam quality (BPP) | ≤5 mm·mrad — production grade | ≤3 mm·mrad — aerospace grade | ≤3 mm·mrad — aerospace grade |
| Price (approximate) | $4,700 FOB | $30,000–$50,000 | $50,000–$80,000 |
| Support model | 12hr video response, English | Regional service centers | Regional service centers |
| Factory audit | ✅ Anytime | ⚠️ Through distributor | ⚠️ Through distributor |
| OEM/ODM | ✅ Full white-label | ❌ Not available | ❌ Not available |
| Best for | Production fabrication | Mission-critical precision work | High-precision automated lines |
The honest assessment:
The honest assessment: If you’re welding aerospace components with 0.1mm tolerance requirements, a premium OEM system is the right tool. If you’re welding structural steel, heavy equipment, ship components, or production fabrications — where the beam quality difference is invisible to the naked eye — the KH-3000 delivers identical functional results at a fraction of the cost. And when you need help, you get an English-speaking engineer on video call within 12 hours —
not a service contract to negotiate.
Questions Industrial Buyers Ask
The laser source, optics, and control electronics are the same component class used in mid-to-high-end industrial systems globally. Enclosure and cooling are built to industrial standard — 240KG net weight reflects the construction. The key difference vs. premium systems is in automation integration and ultra-precision beam profiling. For general heavy fabrication, the functional difference is negligible.
Two questions will answer this.
First: what’s your thickest regular material? If you’re consistently welding 6–8mm plate, beam, or channel, the 3000W’s single-pass capability eliminates the multi-pass time cost that erodes 2000W savings within months.
Second: how many shifts? If you run two or three shifts, the 3000W’s 24/7 continuous-duty cooling pays for itself in uptime alone. If your thickest regular work is 4–5mm on a single shift, the KH-2000 handles that well at a lower investment. Either way, send us your typical job specs and we’ll give you an honest recommendation — not an upsell.
We maintain inventory for all model generations. MAX and Raycus laser modules are industry-standard components with a global supply chain — not proprietary lock-in. Critical spares (protective lenses, focusing lens, nozzle kit) run under $200 total. Keep a small shelf stock and you’re self-sufficient.
Three things no other supplier will promise in writing: (1) You can visit our factory — we’re a manufacturer, not a trading company. (2) 1.2M+ followers have watched our machines weld publicly for years — verifiable, not photoshopped. (3) English technical support responds within 12 hours with video-based troubleshooting — not “read the Chinese manual.” Ask your other suppliers to match these three. They won’t.
Send us your materials. We’ll weld them on video — free. If you prefer, visit our factory and
run the machine yourself. Either way, you verify performance before paying.
Ready to See 3000W Performance on Your Own Materials?
Every KH-3000 order includes: pre-shipment video inspection, export-grade packaging with shock indicators, and remote setup support.
